Carvin Jacuzzi Multiport Filter Valve Dvk7 1.5″ Bolt – 39262803R

Description

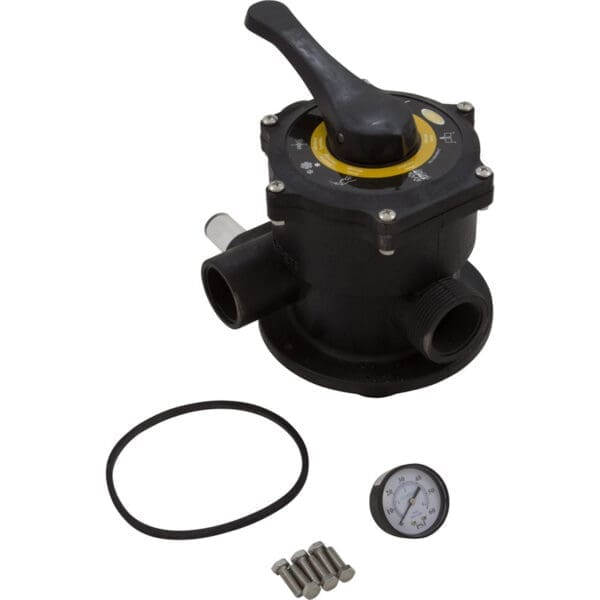

Jacuzzi 7 Position Multiport Dial Valve DVK-7 39262803R , Replaces DV ASSY 7-POS 1-1/2NPT S9263009 Complete with: 47-0255-07-R Square Ring 23-2577-02 Sight Glass 13-0382-03 Deflector Gasket Back Mount Pressure Gauge Filter Bolts (6), Consists of the following repair parts: 39-2517-07 Handle 14-3852-07 Handle Pin 39-2626-05-R Cover 221665081115E Label Not Available OPT 4628-51 Washers (2 Req 14-3834-00) 14-3948-02 Cover Screw 1-1/4×20 (6 req) 14-0725-08 Cover Nut (6 req) 47-0214-07 Oring Shaft OPT 4628-32 Washer Spring (14-3833-01) 16-0262-05 Spring 39-2515-09 Plug and Spoke Gasket Uses Repair Kits, 39-2626-05RKIT Key Cover Stem Assy, 39-2517-07-RKIT Handle Kit DV4/6/7, 39-2515-09-RKIT Diverter Kit DV 4/6/7, OPT 4625-80 TM-12-JL Praher Valve DOES NOT INCLUDE: 43-0715-05 Flow Diverter , 31-0113-64-R004 Pipe 4.5″ x 1.5″ OBSOLETE, 88-1580-01 Basket Upper Assy, Fits Jacuzzi Sand Filters laser 160L 190L 225L 250L with Bolt on Valves, MFM17 MFM20 MFM24 with Bolt on valve (DVK6)
