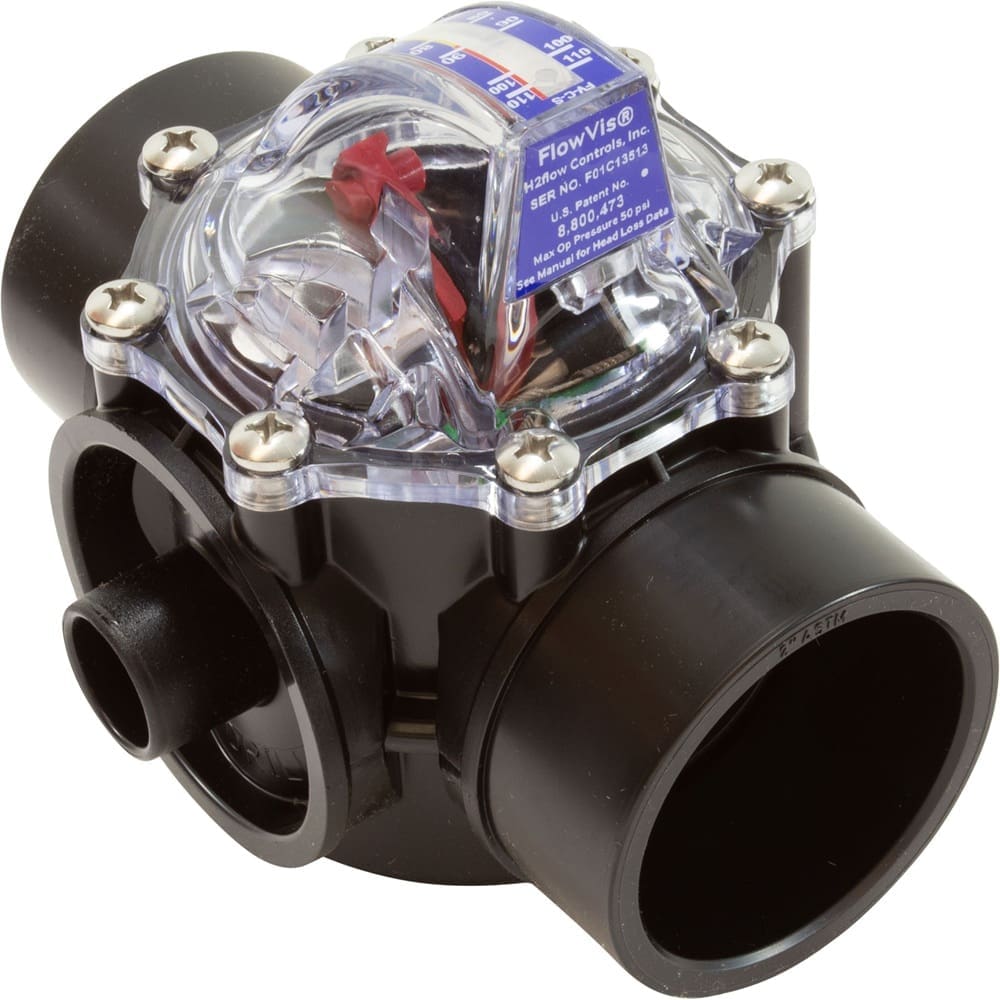

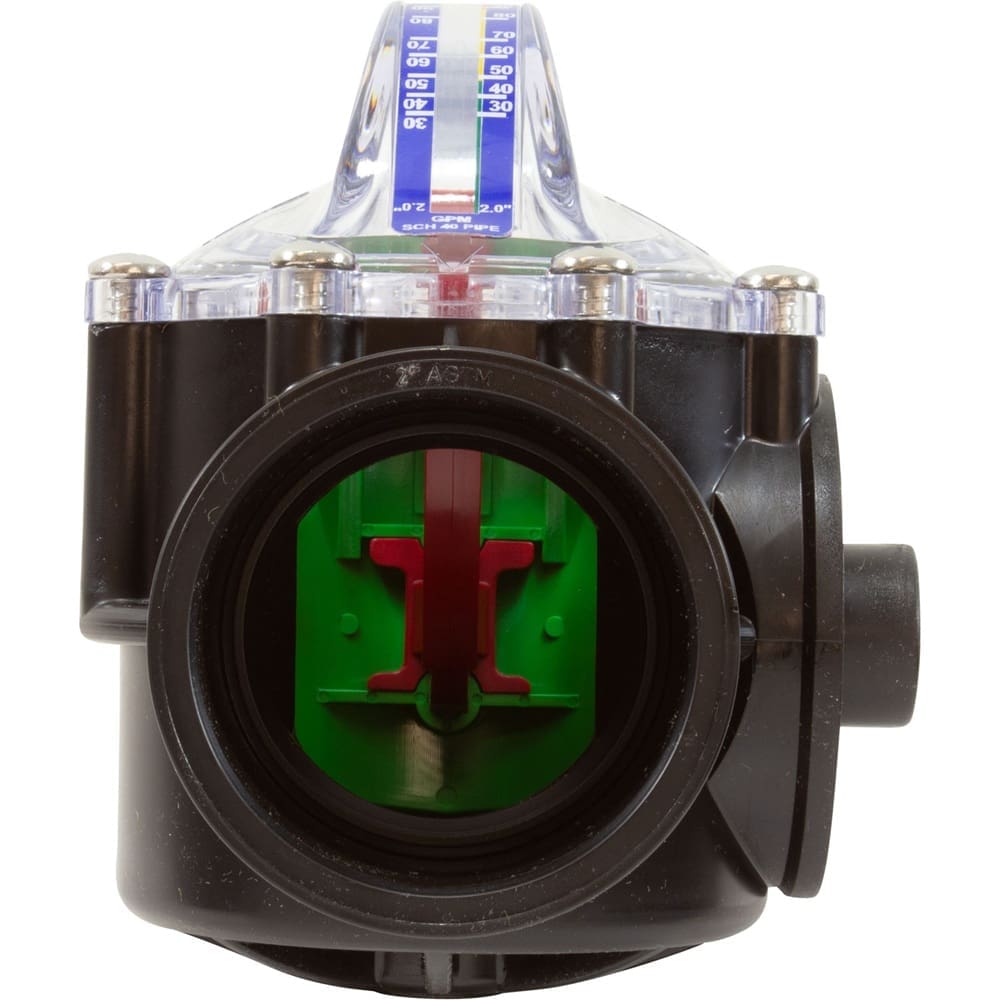

Flowvis Flow Meter 2″ with Safety Flapper – FV-C-S

Description

H2 Flow FlowVis Flow Meter and Safety Flapper Check Valve

With Safety Flapper for VGBA Compliance (hole in check flapper)

Does not prevent backflow (Not a Check Valve)

Fits 2″ pvc pipe.

MPN: FV-C-S

• Can be installed in tight spaces no lead in or exit piping length required.
• Can be installed with unions.
• Can be installed against elbows and valves and pumps.
• 10-110 gpm Calibrated for 2″ PVC pipe.

Warning: Do Not Use On 1.5″ PVC pipe, it is calibrated for 2″ PVC Pipe only.

FlowVis Features:

• For use with 2″ Pipe
• Measure flow rates from 10 to 110 GPM
• Non-Sealing Safety Flapper for Pools and Spas with SVRS Systems.
• Installation flexibility – far less space required than other flow meters
• Unique design results in maintained accuracy even with entrained air caused by suction leaks.
• FlowVis provides a precise, easy-to-read flow rate
• Maximize energy savings by slowing the pump to its lowest required speed for pool sanitation
• Allows precise and repeatable valve positioning for perfect water feature operation
• Design life of 15 years with spring replacement every 7.5 years
• Clear, easy to read scale
• No calibration required Accuracy of +/- 2 GPM
• Rugged construction Pressure tested to >50psi
• NSF certified
• 5-year manufacturers breakage warranty
• Assembled in the USA
