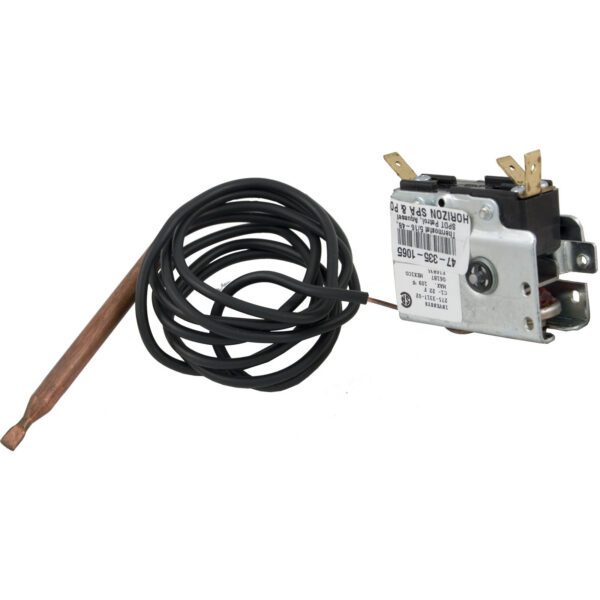

Invensys Thermostat 5/16″x4″ with 48″ capillary 275-3317-02

Description

Eaton Mears Spa Thermostat SPDT

25 amp Duty
3 Wire Terminals
Sleeved 48″ Capillary 4″ X 5/16″ Bulb

Shrink tube wrapped for electrical safety

Thermostat, Eaton, Mechanical, 48″ Capillary x 5/16″ Bulb x 4″ Bulb Length, SPDT
Thermostat, Invensys, Patrol/Aquaset, 5/16″, 48″, SPDT, 25A

Thermostats
Single pole rated at 25 amps with max temp rating at 107°F.
Best results are obtained when the bulb is installed in a dry well or groove tube at or immediately before the heater.
This is a safety device! If it is found to be out of calibration, do not attempt to perform a field adjustment
Replace bad thermostat with a new one

Capillary Length: 48″ Shrink Tube Sleeved
Bulb Thickness: 5/16″

MPN 275-3317-02

Replaces:
275-3317-01 , 389771 , 612HORI45
