Waterway Split Nut Carefree Filter Collar – 505-3010

Description

Waterway Split Nut Collar Valve Flange Lock Ring

for Carefree, Clearwater and TWM Filters built 2001-2024

MPN 505-3010

• Includes Stainless Steel Bolt and Nut 800-0100 (obsolete)

Use with (not included):

• 505-3000 Threaded sleeve ring (replaces 505-3030)
• 805-0435 Oring for Flange Collar 5-5/8″ ID, 5/16″ Cross Section

Tech Tips:

• 505-1960 and 505-3000 (505-3030) are the same part.
• Difference is 505-1960 is sleeve without the screw and 505-3030 is with the screw
• 505-1960 + 819-0022 (the screw) = 505-3000 (505-3030)
• For the split nut, order 505-3010 (31-270-1213).
• For the threaded sleeve, order 505-3000 (31-270-1211).
• For split nut and sleeve assy, order 505-3020 (31-270-1217)

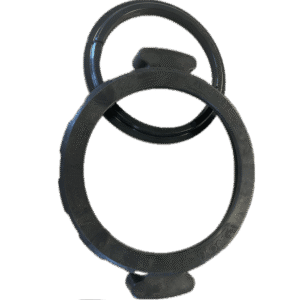

Note: In 2025 Split Nut Collar was replaced by 550-2300
550-2300 Includes (718-1860 Collar Nut and 505-2300 Retainer C-Clip)
