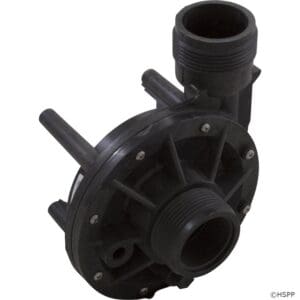

Waterway Wet End Hiflo Ii 48Fr 1 Hp – 310-7720Sd

Description

Waterway 1.0 hp Hi-Flo II 2″ Side Discharge Wet End (2014 – Current). 310-7720SD Impeller has red dot inside eye, Top outlet port is 2″ mbt union threads with internal 1.5″ fpt fine threads for standard PVC fittings. Center inlet port is 2″ mbt union threads with no internal threads, Replaces old style wet end 310-1130SD, Consists of the following parts: 715-4020 Drain Plug Wing Style, 805-0112 Drain Plug Oring, 819-1110 Screw Volute (8), 311-2170 Intake Faceplate 2″, 805-0158 Oring Faceplate, 310-8020 Impeller 1 hp, 811-1040A Pump Seal Spring, 811-1040B Pump Seal Ceramic, 315-2520 Volute Side Discharge, Used on Hi-Flo II pumps marked 1.5hp SPL
